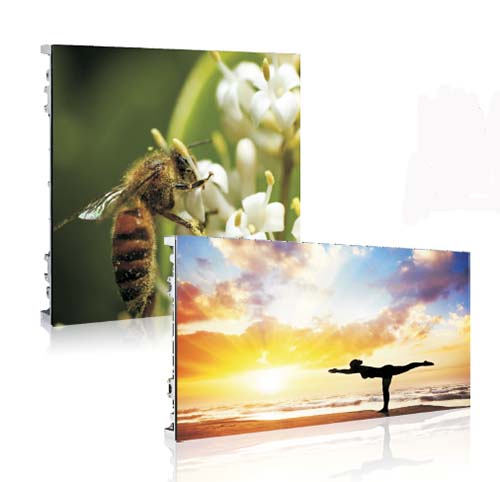

L-star series Pixel Pitch PH2.976mm/PH3.9mm/PH4.8mm/PH5.2mm/PH7.8125mm Luxon's newest display products enjoy perfect display effect and excellent peoduct appearance. they can be installed fast and suitable for indoor rental activities. |
Light weight Super thin Stable quality

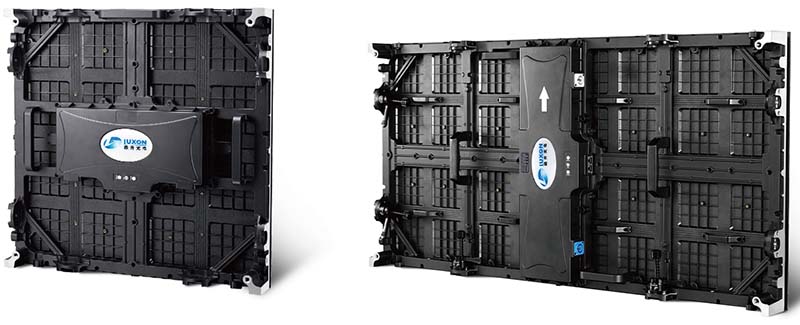

Die-casted with high-strength aluminum. Light weight, high bearing capacity and precision
Cabinet connection lock
User-friendly locking system makes disassembly and maintenance easy and convenient
|
Dual backup of signal and power between modules Automatically switch to the backup signal when the plug pins brake or fail, to ensure non-stop opeartion of the LED display. |
 |
Can make inner curved screen
Different cabinet size can meet the demands of different areas
Specifications:
|
Items |
Parameter |
||||
|
Pixel Pitch |
PH2.976mm |
PH3.9mm |
PH4.8mm |
PH5.2mm |
|
|
Module Resolution(W*H) |
168*168 |
128*128 |
104*104 |
96*96 |
|
|
Pixel Configuration |
1R1G1B(in 3 n 1) |
||||
|
LED Encapsulation |
Black SMD 1514/2121 |
Black SMD2121 |
Black SMD 2121 |
Black SMD 3528 |
|
|
Pixel Density |
112896 Pixel/㎡ |
65536 Pixel/㎡ |
43264Pixel/ ㎡ |
36864 Pixel/㎡ |
|
|
Driving Method |
1/14 Scan |
1/16 Scan |
1/13 Scan |
1/8 Scan |
|
|
Refresh Frequency |
≥2880Hz |
||||
|
Driver IC |
Special constant current IC with high refresh rate & high grey scale |
||||
|
Grey Scale |
14Bit |
||||
|
Cabinet Size |
500*500mm |
||||
|
White balance Brightness |
900cd/ ㎡ |
900cd/ ㎡ |
900cd/ ㎡ |
1300cd/ ㎡ |
|
|
Color Temperature |
8000K±500 （customizable） |
||||
|
Viewing Angle |
Horizontal 140° Vertical 120° |
||||
|
Optimal Viewing Distance |
≥3m |
≥4m |
≥5m |
≥5m |
|
|
Working Voltage |
AC 220V/110V ±10% |
||||
|
Module voltage |
DC4.2V |
||||
|
Max Power Consumption |
165W/PCS |
100W/PCS |
150W/PCS |
150W/PCS |
|
|
Avg. Power Consumption |
85W/PCS |
50W/PCS |
80W/PCS |
80W/PCS |
|
|
Lifetime |
50000hours |
||||
|
Operating Temperature |
–20℃ ～ 40℃ |
||||
|
Net weight |
8Kg/pcs |
8Kg/pcs |
8Kg/pcs |
8Kg/pcs |
|
|
Items |
Parameter |
||||
|
Pixel Pitch |
PH4.8mm |
PH5.2mm |
PH7.8125mm |
||
|
Module Resolution(W*H) |
104*208 |
96*192 |
64*128 |
||
|
Pixel Configuration |
1R1G1B( 3in1 ) |
||||
|
LED Encapsulation |
Black SMD 2121 |
Black SMD3528 |
Black SMD 3535 |
||
|
Pixel Density |
43264 Pixel/㎡ |
36864 Pixel/㎡ |
16384 Pixel/ ㎡ |
||
|
Driving Method |
1/13 Scan |
1/8 Scan |
1/4 Scan |
||
|
Refresh Frequency |
≥2880Hz |
||||
|
Driver IC |
Special constant current IC with high refresh rate & high grey scale |
||||
|
Grey Scale |
≥14Bit |
||||
|
Cabinet Size |
500*1000mm |
||||
|
White balance Brightness |
900cd/ ㎡ |
1000cd/ ㎡ |
3500cd/ ㎡ |
||
|
Color Temperature |
8000K±500 （customizable） |
||||
|
Viewing Angle |
Horizontal 140° Vertical 120° |
||||
|
Optimal Viewing Distance |
≥5m |
≥5m |
≥8m |
||
|
Working Voltage |
AC 220V/110V ±10% |
||||
|
Module voltage |
DC4.2V |
||||
|
Max Power Consumption |
250W/PCS |
250W/PCS |
350W/PCS |
||
|
Avg. Power Consumption |
125W/PCS |
125W/PCS |
180W/PCS |
||
|
Lifetime |
50000hours |
50000hours |
50000hours |
||
|
Operating Temperature |
–20℃ ～ 60℃ |
||||
|
Net weight |
12.5Kg/pcs |
12.5Kg/pcs |
12.2Kg/pcs |
||
