← UFO small pixel pitch series Pixel pitch: PH1.27mm PH1.58mm PH1.9mm PH2.5mm Application field: smart cities, traffic control centers, security monitoring centers, video meeting rooms, radio and TV systems, exhibition centers and other places |
Golden ratio, high gray scale and high refresh rate in low brightness
16:9 2K 4K 8K
Designed according to ergonomics, 16:9 screen ratio, 2K 4K 8K large screens easily realized, high gray scale and high refresh rate in low brightness, perfect viewing experience.
|

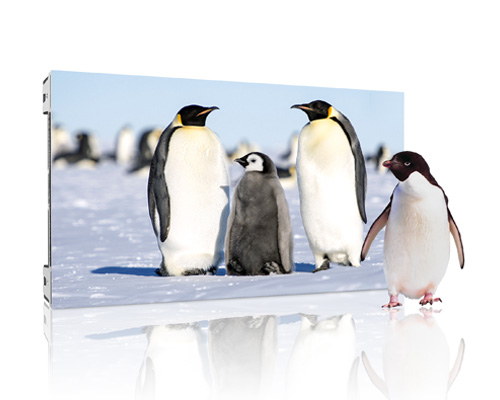

Slim and thin design single cabinet weight only 10kg, adopts fashionable die-casting aluminum frame design.
|
|
|

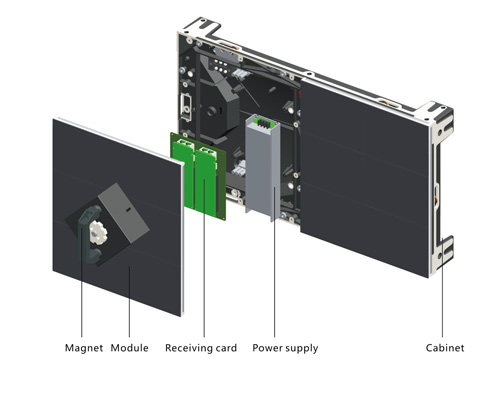

← Easy front-access maintenance Module structure easy to realize front-access maintenance, installation by fixing magnets, easy and convenient dismentling of modules without the use of tools (only needs 30s), unique protective structure which protect modules from damaging |
 |
 |

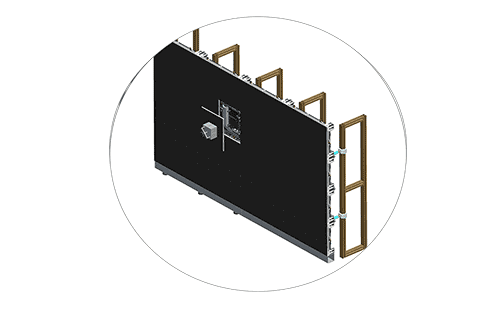

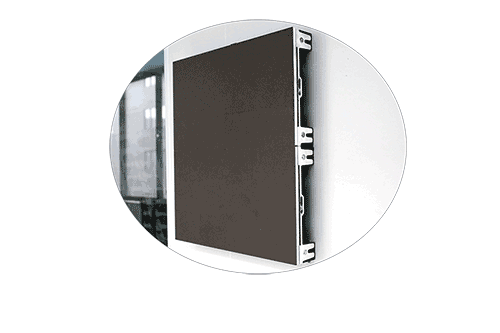

| Support frame installation | Wall mounting installation |
Specifications:
|
Items |
Parameter |
|||||
|
Pixel Pitch |
PH1.27mm |
PH1.58mm |
PH1.906mm |
PH2.57mm |
||
|
Resolution |
480(W)*270(H) |
384(W)*216(H) |
320(W)*180(H) |
240(W)*135(H) |
||
|
Pixel Configuration |
1R1G1B(in 3 n 1) |
|||||
|
LED Encapsulation |
1010 |
1010 |
1010/1514 |
1514/2121 |
||
|
Pixel Density |
619350 Pixel/㎡ |
396384Pixel/㎡ |
275267Pixel/㎡ |
154837Pixel/㎡ |
||
|
Driving Method |
1/20 Scan |
1/24 Scan |
1/30 Scan |
1/23Scan |
||
|
Refresh Frequency |
≥3840Hz (Support High refresh rate, depend on the system configuration) |
|||||
|
Contrast |
5000:1 |
|||||
|
Driver IC |
MBI5153 |
|||||
|
Grey Scale |
16Bit (depending on the system and IC configuration) |
|||||
|
Cabinet Size |
609.92mm*343.08mm |
|||||
|
Color Temperature |
2000K-12000K( Adjustable)
|
|||||
|
Viewing Angle |
Horizontal 160° Vertical 160° |
|||||
|
Optimal Viewing Distance |
＞1.27m |
＞1.58m |
＞1.9m |
＞2.5m |
||
|
Working Voltage |
AC110/220V |
|||||
|
Module voltage |
DC4.2V |
|||||
|
Max Power Consumption |
150W/PCS |
150W/PCS |
130W/PCS |
100W/PCS |
||
|
Avg.Power Consumption |
75W/PCS |
75W/PCS |
65W/PCS |
50W/PCS |
||
|
Lifetime |
100000hours |
|||||
|
Operating Temperature |
–25℃ ～ 55℃ |
|||||
|
Net weight |
10Kg/pcs |
|||||
