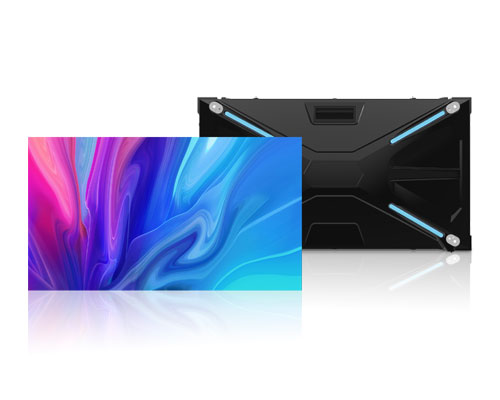

Cybaster Series Pixel Pitch:PH0.9 PH1.2 PH1.5 PH1.8 Common-cathode fine pitch led display |
|

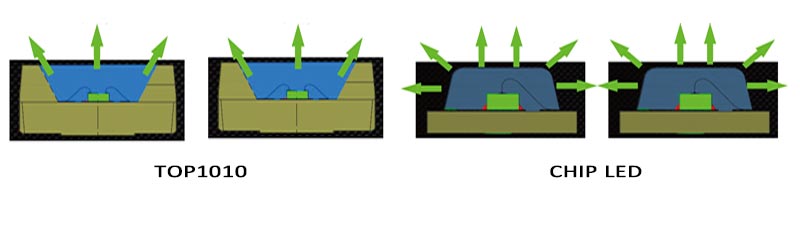

Self-developed and encapsulated TOP1010 common cathode LED Ultra-small size design meets the needs of ultra-high density indoor screens. The design of lamp cone completely solves the problem of "light interference" between adjacent lamps of traditional CHIP LED
|
|

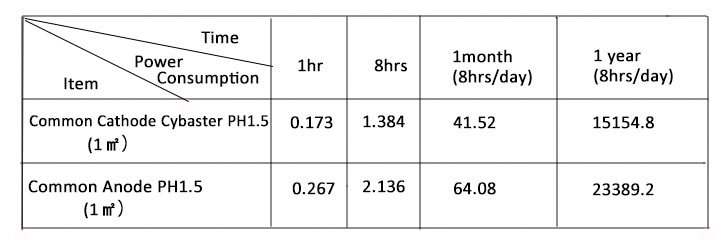

Low power consumption, with over 35% energy saved
The result: Common cathod PH1.5 consum 35% less than common anode PH1.5
|
|
Low Heating After 800cd brighteness operated for 1 hour, surface of common cathode Cybaster PH1.5 is 40.1℃ while common anode PH1.5 is 53℃. Higher the density. It will asle reduce brightness decay and extinct lifetime.
|
|

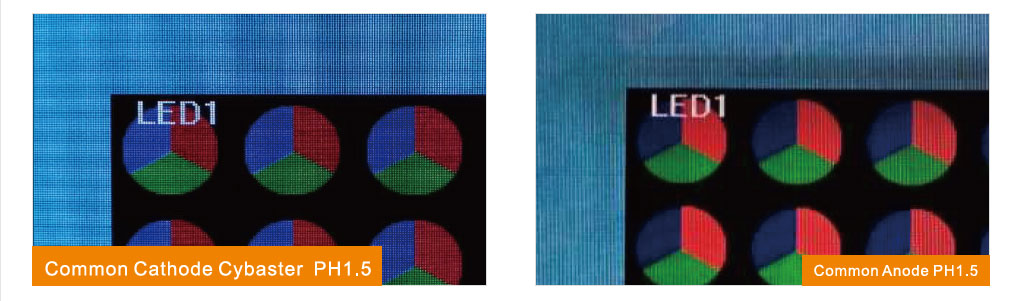

Decoupling & High scale in low brightness High-spec integraded common cathode IC effectively reduce coupling
|
|
Term |
Parameter |
||
|
Pixel Pitch |
PH1.25mm |
PH1.5625mm |
PH1.875mm |
|
Bright after colour correction |
600nit |
600nit |
600nit |
|
Refresh Frequency |
＞3.8K HZ |
＞3.8KHZ |
＞3.8K HZ |
|
Frame Rate |
50/60/100/120 HZ |
50/60/100/120 HZ |
0/60/100/120 HZ |
|
Protection Level |
IP 3X(front)*IP52(rear) |
||
|
Maintenance Method |
Front |
||
|
Driving IC |
SCL8080 |
||
|
LED Encapsulation |
Common Cathode 1010 |
||
|
Gray Scale |
16bit |
||
|
Cabinet Size |
600W*337.5H*63D(mm) |
||
|
PCB Size |
150*168.75(mm) |
||
|
Solution |
4*2 |
||
|
Martial |
Die-Casting |
||
|
Cabinet Resolution |
480*270 Pixel |
384*216 Pixel |
320*180 Pixel |
|
Viewing Angle |
Horizontal 160° Vertical 140° |
||
|
Certificated |
CCC ETL FCC ROHS CE |
||
|
Input Voltage |
AC100-240 Volts |
||
|
AC Frequency |
50~60HZ |
||
|
Power Consumption |
Max:90±10% Average 36±10% |
||
|
Working Temperature |
-20min/＋45Max |
||
|
Storage Temperture |
-20 Min/＋60Max |
||
|
Working Humidity |
20% Min/70% Max |
||
|
Storage Humidity |
10% Min/90% Max |
||
|
lifetime |
100000 Hrs |
||
|
Physical Pixel Density |
640000 |
409600 |
284444 |
|
Cabinet Weight |
5.4kg |
||
